COBBLE OR GRAVEL ARMORS
bar



1. CATEGORY

2.0 – Bank Armor and Protection

2. DESIGN STATUS

Level II

3. ALSO KNOWN AS

River Stone Blanket.

4. DESCRIPTION

Riprap Revetment is the most widely used form of streambank protection. Although properly designed riprap revetments can be quite effective, the color and angularity of quarried stone is not a natural component of stream corridors. Cobbles are natural stones larger than 6.5 cm (2.5 in.) in diameter that have been rounded by the abrasive action of flowing water, while gravel is material smaller than cobble, but larger than sand (larger than about 5 mm) (0.2 in). Rounded river cobble or gravel blanket presents a more natural appearance, and can be as effective as riprap.

5. PURPOSE

Cobble or Gravel Armor is used to protect a sloping bank against fluvial entrainment by flow in the stream or over the top of the bank. Use of natural materials with colors and shapes consistent with the local environment make the resulting structure visually unobtrusive.

6. PLANNING

Useful for Erosion Processes:
Toe erosion with upper bank failure
Scour of middle and upper banks by currents
Local scour
Erosion of local lenses or layers of noncohesive sediment
Erosion by overbank runoff
General bed degradation
Headcutting
Piping
Erosion by navigation waves
Erosion by wind waves
Erosion by ice and debris gouging
General bank instability or susceptibility to mass slope failure

Spatial Application:
Instream
Toe
Midbank
Top of Bank

Hydrologic / Geomorphic Setting
Resistive
  Redirective
Continuous
  Discontinuous
Outer Bend
Inner Bend
Incision
Lateral Migration
Aggradation

Conditions Where Practice Applies:

HEC-23 (Lagasse et al., 1997) notes that riprap is useful for controlling lateral instability, but only finds secondary application in controlling vertical instability. Bank slope may be steep or flat but not vertical. Site conditions must allow for a 1V:3H slope.

Complexity:

Low.

Design Guidelines / Typical Drawings:

Granular materials must be carefully sized to avoid removal during flows that generate high shear stresses. The compilation of Shields constants presented by Buffington and Montgomery (1997) may prove helpful as it includes many values from natural streams (as opposed to laboratory flumes), and extensive information regarding the collection and derivation of each value of dimensionless critical shear stress. Gravel is typically too small for toe protection, but is often incorporated in mid- or upper-bank treatments (Henderson and Shields, 1984). Cobble or Gravel Armor is generally designed and constructed in a fashion similar to riprap. Cobbles should have hardness and resistance to degradation similar to good quality quarried riprap.

Design details for the toe and upstream and downstream ends of cobble revetment are similar to riprap revetment. These details are quite critical, as failures often originate at the endpoints or toe of the structure.

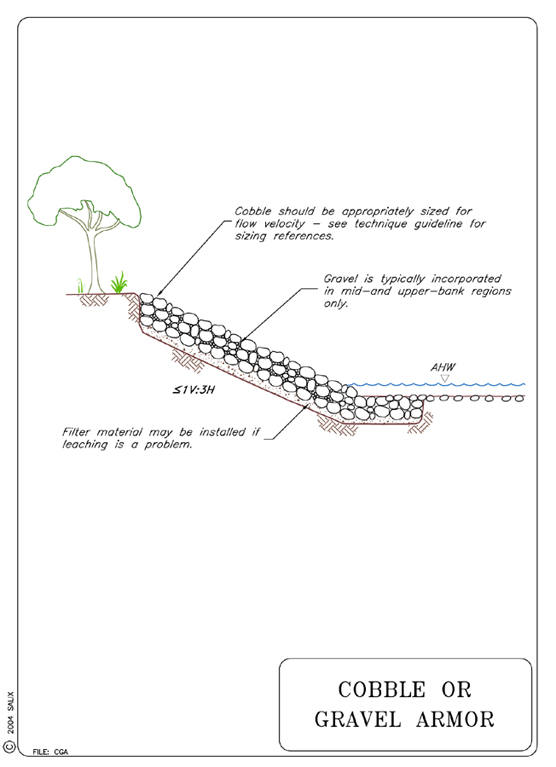

Cobble or Gravel Armors Typical Drawing

7. ENVIRONMENTAL CONSIDERATIONS / BENEFITS

Although properly designed riprap revetments can be quite effective, the color and angularity of quarried stone is not a natural component of stream corridors. Because cobble and gravel are naturally found in river environments, they are less conspicuous and more aesthetically pleasing than riprap. Cobble and gravel may produce some aquatic benefits by providing stable substrate for certain types of benthic macroinvertebrates and spawning habitats for some species of fish. However, gravel or cobble spawning habitat is often degraded if the material is not periodically disturbed by flow to flush away finer sediments that fill interstices in the coarse matrix. Since protection measures must be stable at design flow, flushing of gravel or cobble may not occur.

Adverse environmental effects could be caused by the disturbances associated with cobble or gravel mining. Since bank slope for cobble revetment must be more gradual than for riprap revetment, additional area must be sacrificed along the top bank, leading to loss of riparian habitats. On the other hand, volunteer vegetation establishes more readily on the more gradual slope, and such vegetation is not deleterious to revetment performance, although there are inspection, access, and conveyance issues in some cases (Shields, 1991). The effects of vegetation on flow capacity (conveyance) of river channels are discussed in the Special Topic: Management of Conveyance.

8. HYDRAULIC LOADING

Permissible shear and velocity for stone structures are related to the size of rock used in construction. Other factors, such as the angularity of the stone, the thickness of the layers of stone that comprise the structure, and the angle at which the faces of the stone structure are constructed also come into play. See comments regarding stone sizing in the section below on materials and equipment.

9. COMBINATION OPPORTUNITIES

Cobble or Gravel Armor may be combined with vegetation on the upper bank and various structures for toe protection (Henderson & Shields, 1984).

10. ADVANTAGES

Cobble and gravel are usually more natural looking than limestone riprap.

11. LIMITATIONS

Revetments do not provide bed erosion control, and do not provide protection against geotechnical failures of bank slopes. Limited protection is provided against subsurface erosion phenomena such as piping. Rounded cobbles do not interlock as well as angular stones, and therefore the bank slope must be decreased to no more than 1V:3H to achieve stone stability under design flow conditions (Mifkovic and Petersen, 1975).

12. MATERIALS AND EQUIPMENT

Construction equipment is the same as is needed for building quarry stone structures. Washing and grading equipment will be needed if the natural stone must be obtained from local deposits. Detailed guidance for designing stone structures for bed and bank stabilization structures is beyond the scope of this guideline, and many approaches are available (see Special Topic: Designing Stone Structures). Use of riprap larger than 1 m (3 ft) in diameter is unusual, and in most cases, impractical. Maynord (1995) in Escarameia (1998) presents equations for sizing stone that produce sizes 30% larger for rounded stone than for angular riprap.

13. CONSTRUCTION / INSTALLATION

When Cobble Armor is constructed, banks must be graded to a stable slope and geotextile or filter layers of finer granular materials may be required if leaching of fine materials is a problem (see Special Topic: Geotextiles and Root Penetration).

14. COST

Local sources of river cobble are required for cost efficiency. If local sources are available, cobble may be cost-competitive with riprap. Typical costs for stone structures range from $20 to $40 per metric ton ($20 to $40 per U.S. ton), including costs for placement, but this neglects costs for site grading, filter layers, etc.

15. MAINTENANCE / MONITORING

HEC-23 (Lagasse et al., 1997) indicates that riprap revetment requires a moderate commitment of resources for maintenance. Revetments must be periodically inspected and stone must sometimes be replaced. If the underlying bank experiences slope failure, regrading or sometimes installation of measures to address subsurface flow must be applied. Some engineers recommend periodic removal of vegetation growing on or through a revetment, but available evidence suggests that vegetated revetments, although they are more difficult to visually inspect, are just as durable as revetments maintained free of vegetation (Shields, 1991).

16. COMMON REASONS / CIRCUMSTANCES FOR FAILURE

Cobble revetments are susceptible to the same failure mechanisms as riprap revetments, such as toe scour, flanking, and removal of the underlying bank material by leaching or slope instability. In addition, direct removal of individual stones by flow, especially in turbulent settings that feature impinging flow, is a hazard.

17. CASE STUDIES AND EXAMPLES

Cobble was used extensively for revetment along the Sacramento River prior to about 1970, and about two-thirds of the revetments found along a 56 km (35 mile) reach in the late 1980s were made of cobble (Shields, 1991). The cobble revetments were no more or less likely to sustain damage during a large flood than riprap revetments. Many of the cobble revetments exhibited damage when inspected in the late 1970s, but these damages appeared to be related to the lack of adequate toe design, the cumulative scour since placement, and the lack of interlocking between cobbles. Damage did not appear to be related to the presence or absence of woody vegetation (Water and Engineering Technology, 1989).

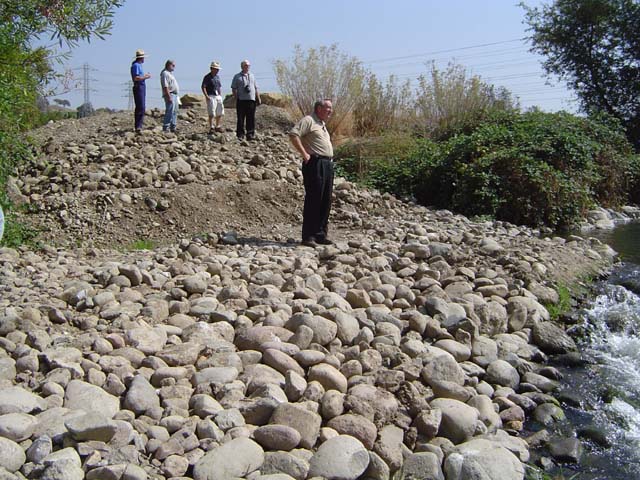

This cobble armor was later cover with soil (see Technique: Soil and Grass Covered Riprap).


Courtesy Santa Clara Valley Water District

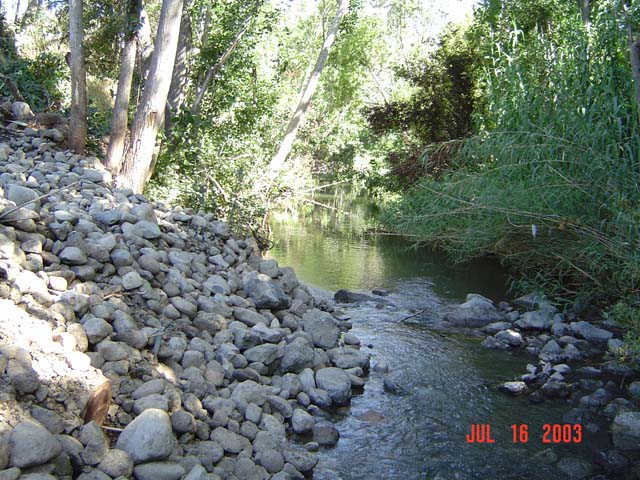

Courtesy Santa Clara Valley Water District

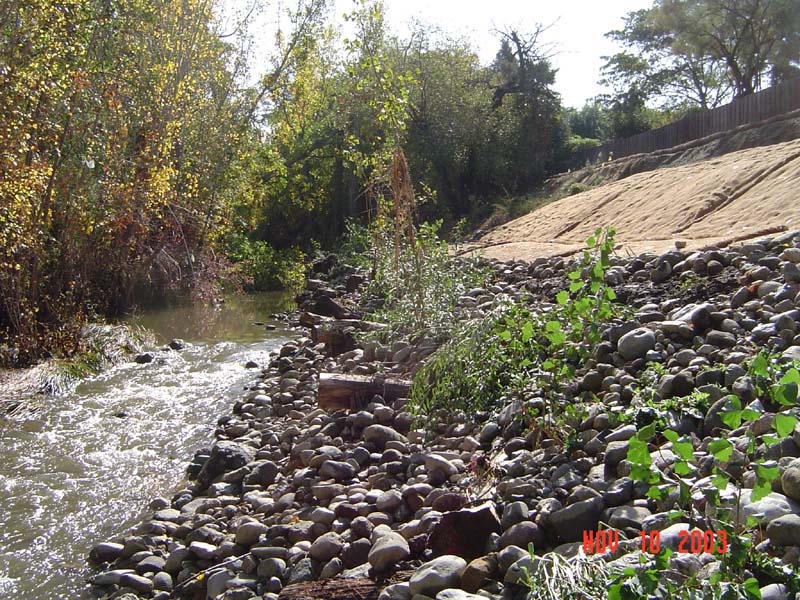

Courtesy Santa Clara Valley Water District

The same site in April of 2004

18. RESEARCH OPPORTUNITIES

The value of Cobble Armor as habitat for fish and macroinvertebrates relative to quarry stone riprap revetment has not been established.

19. REFERENCES

Buffington, J. M., & Montgomery, D. R. (1997). A systematic analysis of eight decades of incipient motion studies, with special reference to gravel-bedded rivers. Water Resources Research, 33(8), 1993-2029.

Escarameia, M. (1998) River and channel revetments. Thomas Telford, Ltd., London.

Henderson, J. E., & Shields, F. D., Jr.  (1984). Environmental Features for Streambank Protection Projects. (Technical Report E-84-11), US Army Engineer Waterways Experiment Station, Vicksburg, MS.

Lagasse, P. F., Byars, M. S., Zevenbergen, L. W. & Clopper, P. E. (1997). Bridge scour and stream instability countermeasures:  Experience, selection and design guidance.  (Hydraulic Engineering Circular No. 23, FHWA HI 97-030), Washington, D. C., pp. 1.3-1.11. (pdf)

Maynord, S. T. (1995). Corps riprap design guidance for channel protection. In C. R. Thorne, S. R. Abt, F. B. J. Barends, S. T. Maynord, and K. W. Pilarczyk. (eds.). River, coastal and shoreline protection: erosion control using riprap and armourstone. John Wiley & Sons, Ltd., Chichester, U. K., 41-42.

Mifkovic, C. S., & Petersen, M. S. (1975). Environmental Aspects, Sacramento Bank Protection. Journal of the Hydraulics Division, American Society of Civil Engineers, Vol. 101, No. HY5, 543-554.

Shields, F. D., Jr., (1991). Woody Vegetation and Riprap Stability Along the Sacramento River Mile 84.5 to 119. Water Resources Bulletin 27(3): 527-536. (pdf)

Water and Engineering Technology. (1989). Geomorphic analysis and bank protection alternatives report for Sacramento River (RM 178-178) and Feather River (RM 0-28). Prepared for the U.S. Army Corps of Engineers Sacramento District, Sacramento California. Water and Engineering Technology, Inc., Fort Collins, Colorado.
